Gauge calibration to ISO 9001:2015 international standards to maintain the highest standards of gauging accuracy.
|Motor||1/4 hp, 4000 RPM|
|Table||0-150 variable RPM|
|Angle of 150mm Base||N/A|
|Size (overall)||470mm x 235mm x 200mm|
|Basic Table w/ 300mm Magnetic Chuck||50kg|
|300mm Magnetic Chuck||20kg|
|200mm diameter hardened & ground steel table||9kg|

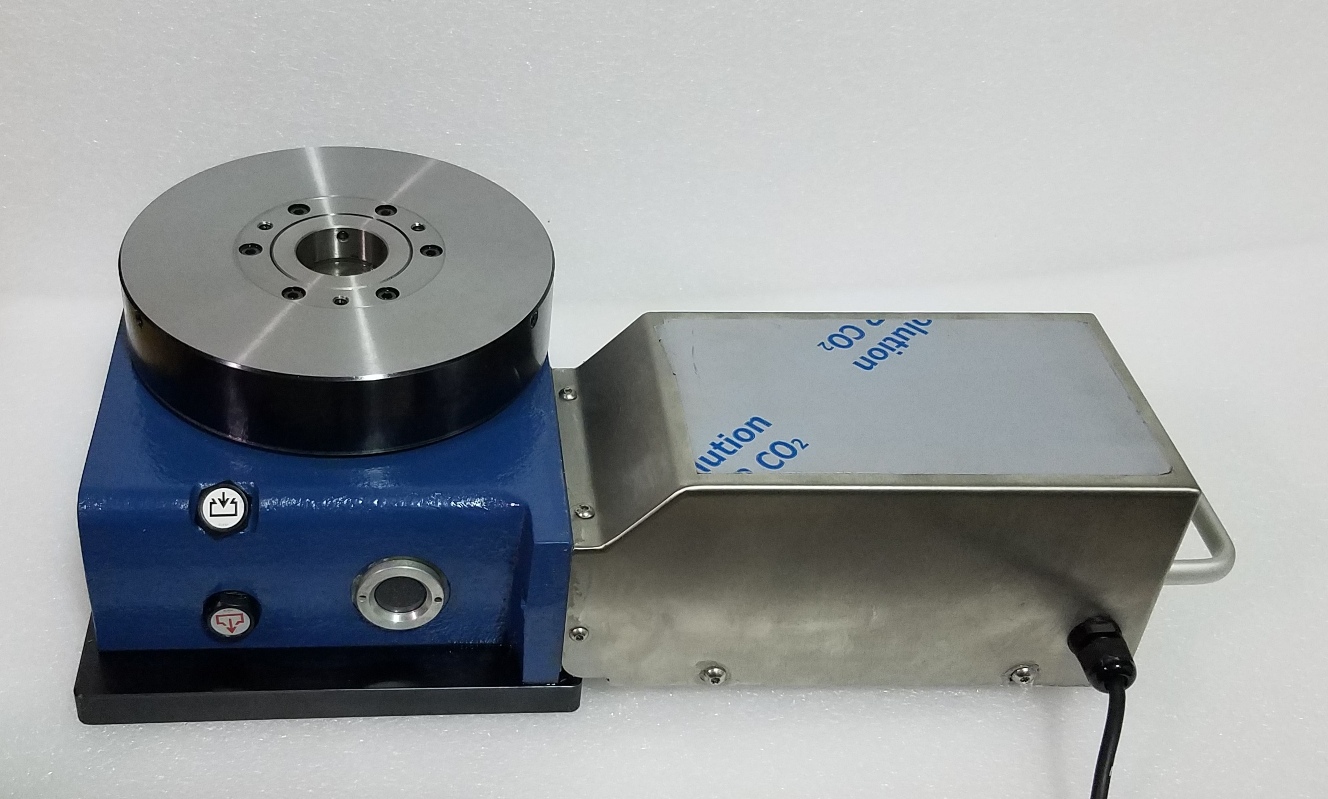

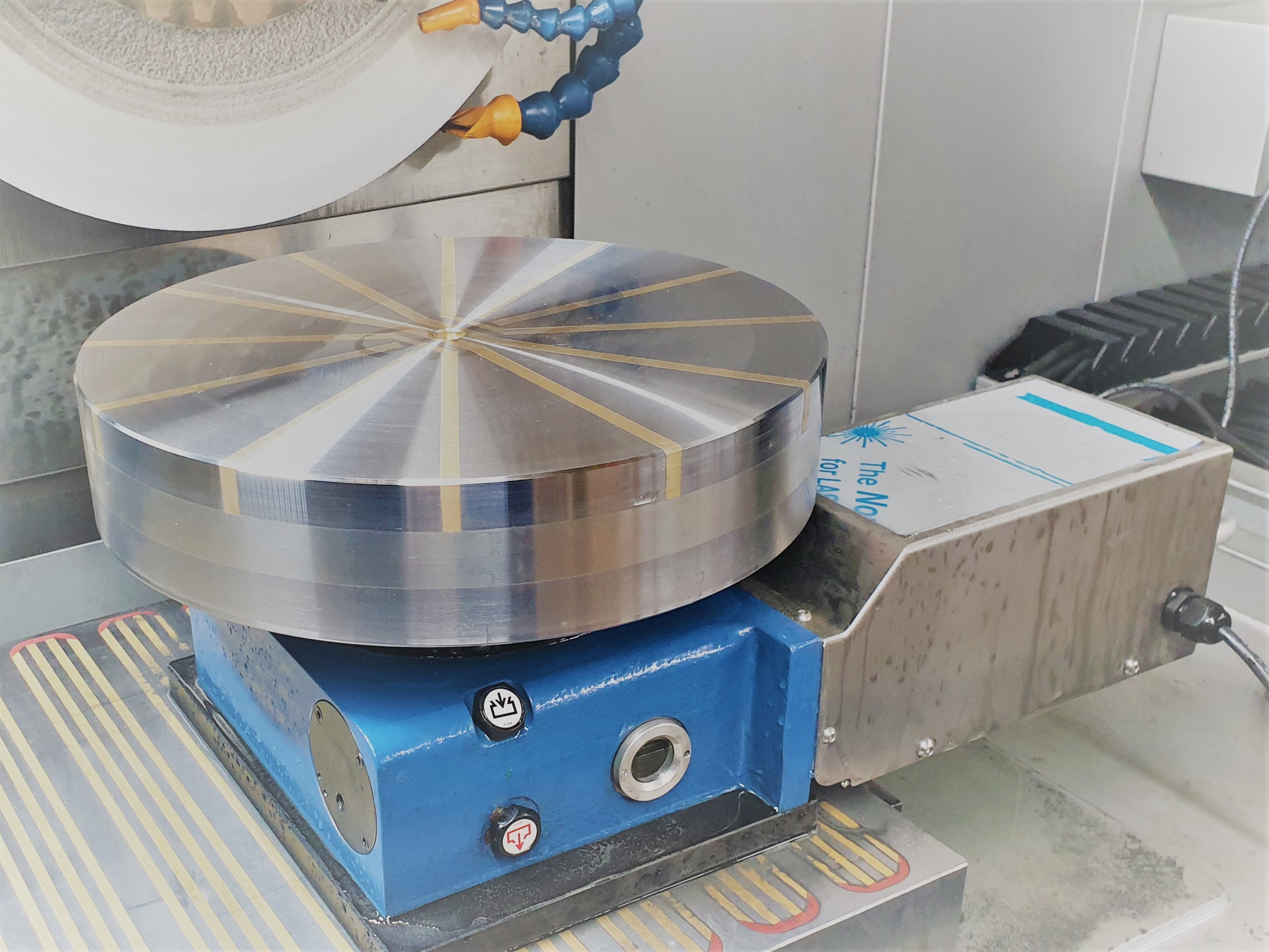

The precision Rotary Grinding attachment converts Surface Grinding machines into a rotary grinding function, offering users greater operating flexibility and improved machining economies. The attachment can be used both on standard and CNC Surface Grinders, the unit fits easily into machines which have enclosed guarding arrangements and performs well under flood coolant conditions.
The rugged design of the attachment provides a high level of accuracy in respect of flatness and surface finish. The attachment conforms to European directive 98/37/EC, supported by EC directive 73/23/EEC and EC directive 89/336/EEC respectively for the Electronic Controller and Electric Motors.
