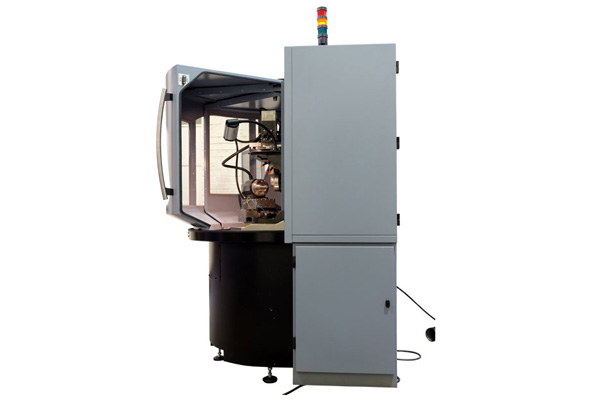

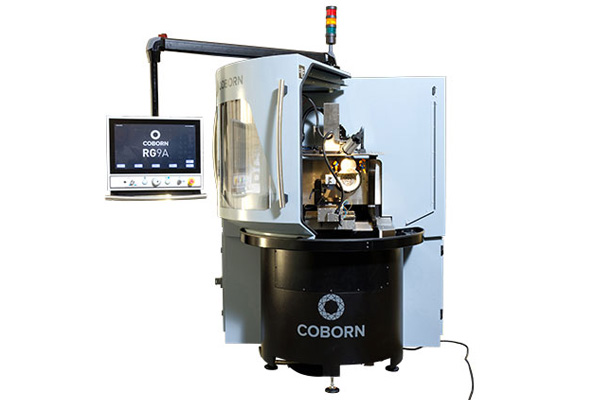

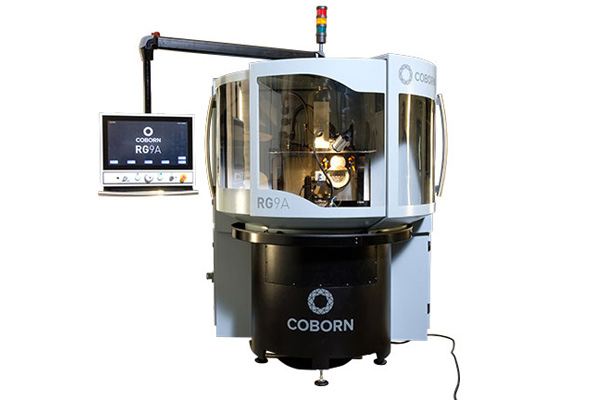

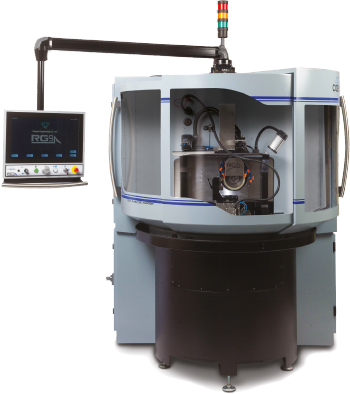

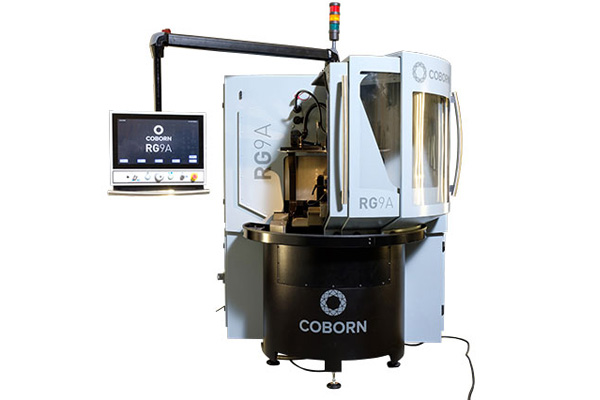

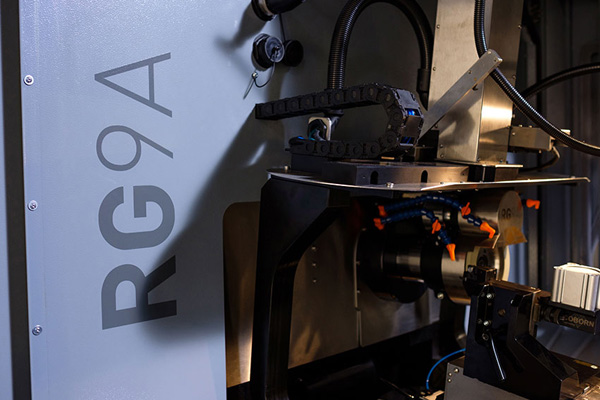

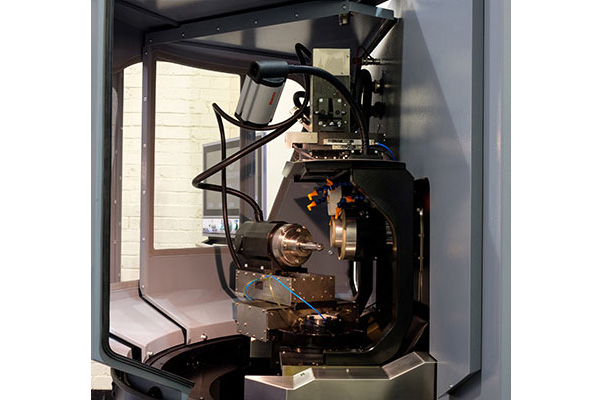

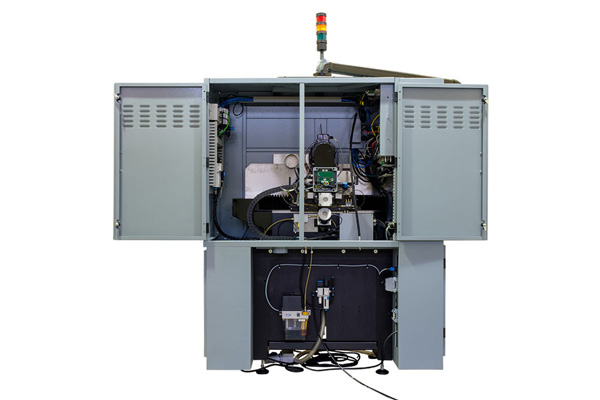

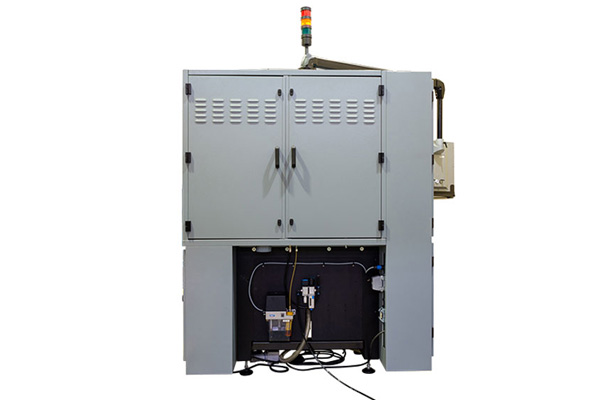

Launched in 2016, the RG9A is a fully automatic, high precision grinding machine designed to meet the sophisticated demands of toolmakers working with both hard and ultrahard materials, such as carbides, ceramics, PCD and PcBN.
Drawing on our 75 years of experience in designing machines for grinding and polishing diamond and related materials, the RG9A’s construction ensures fast grinding times and repeatable accuracy to 2μm tolerances. The Coborn designed and manufactured wheel spindle is dynamically balanced to ensure minimal edge chipping of brittle and delicate tool materials. Programming is rapid, menu driven and straightforward for the operator and the ultra-fast vision system, with closed loop feedback, ensures minimum cycle times and maximum rates of throughput.
The RG9A is ideal for tool manufacturers making both small and large batch sizes. Individual tool set up times are quick and, if required, robot loading is available. From simple, single point shank tools to helical/radius multi-point rotary tools, the RG9A has all the characteristics, functions and capabilities needed to minimize tool production costs.
Machine dimensions (w x d x h) – 1570mm x 1540mm x 2540mm
Machine weight – 1750kg
CNC control system – CNC control with Intel i7 processor running Coborn .net software on a Windows platform

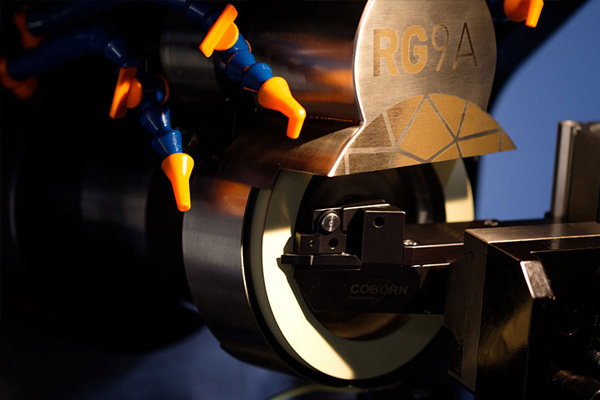

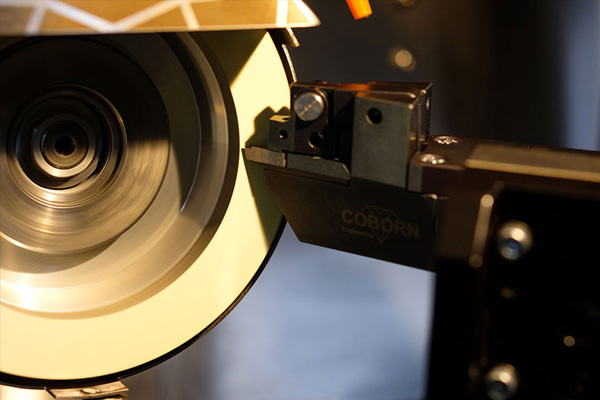

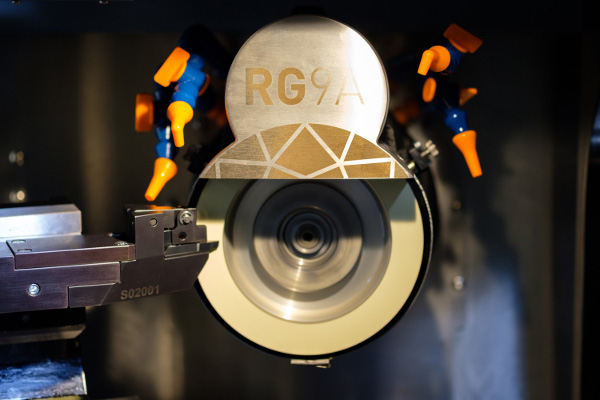

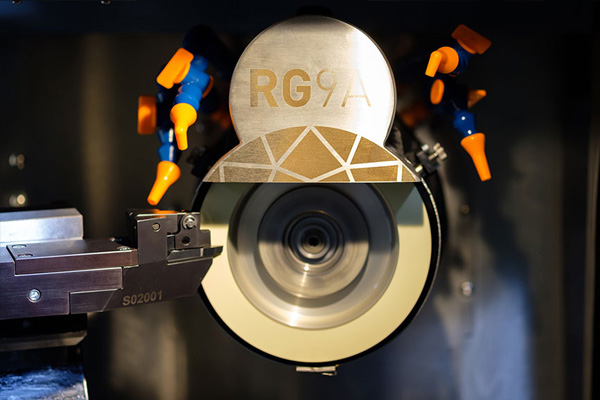

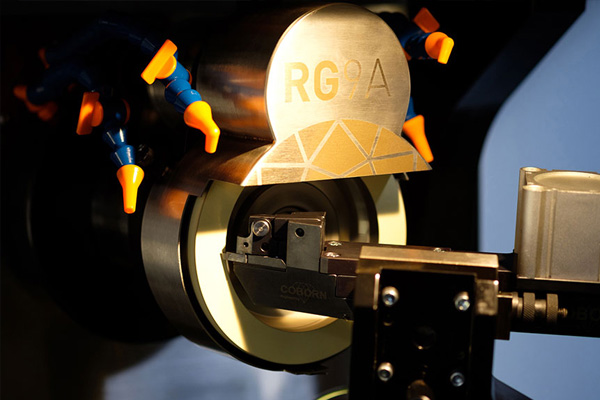

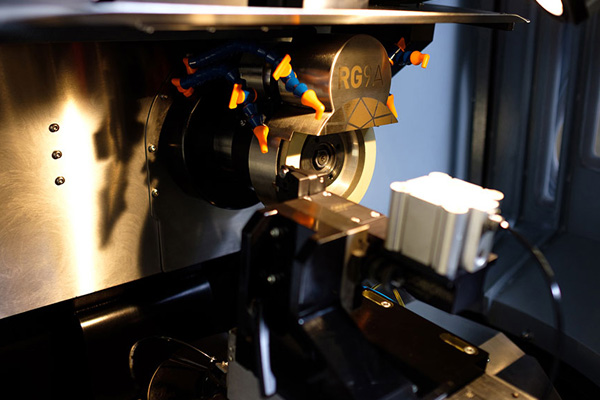

Grinding wheel spindle – 2.2kW 500 – 4000 rpm programmable
Grinding wheel – Ø 150mm – 220mm 6A2 different styles available on request
Dressing system – Coborn in-process dressing system
Lubrication – Centralised automatic lubrication system

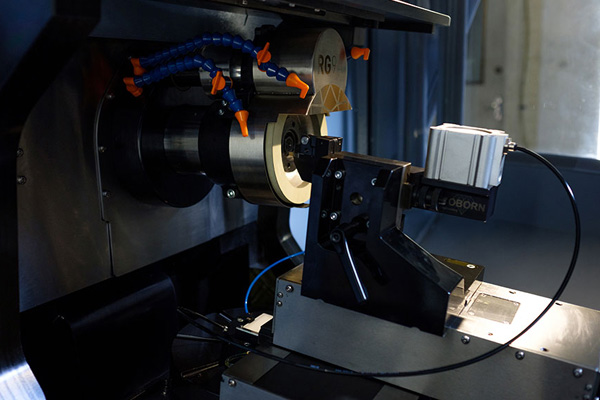

Process measurement – Coborn integrated camera measuring system +/- 0.002mm resolution
Electrical requirements – 380/220 3phase 50/60 Hz 20Amps

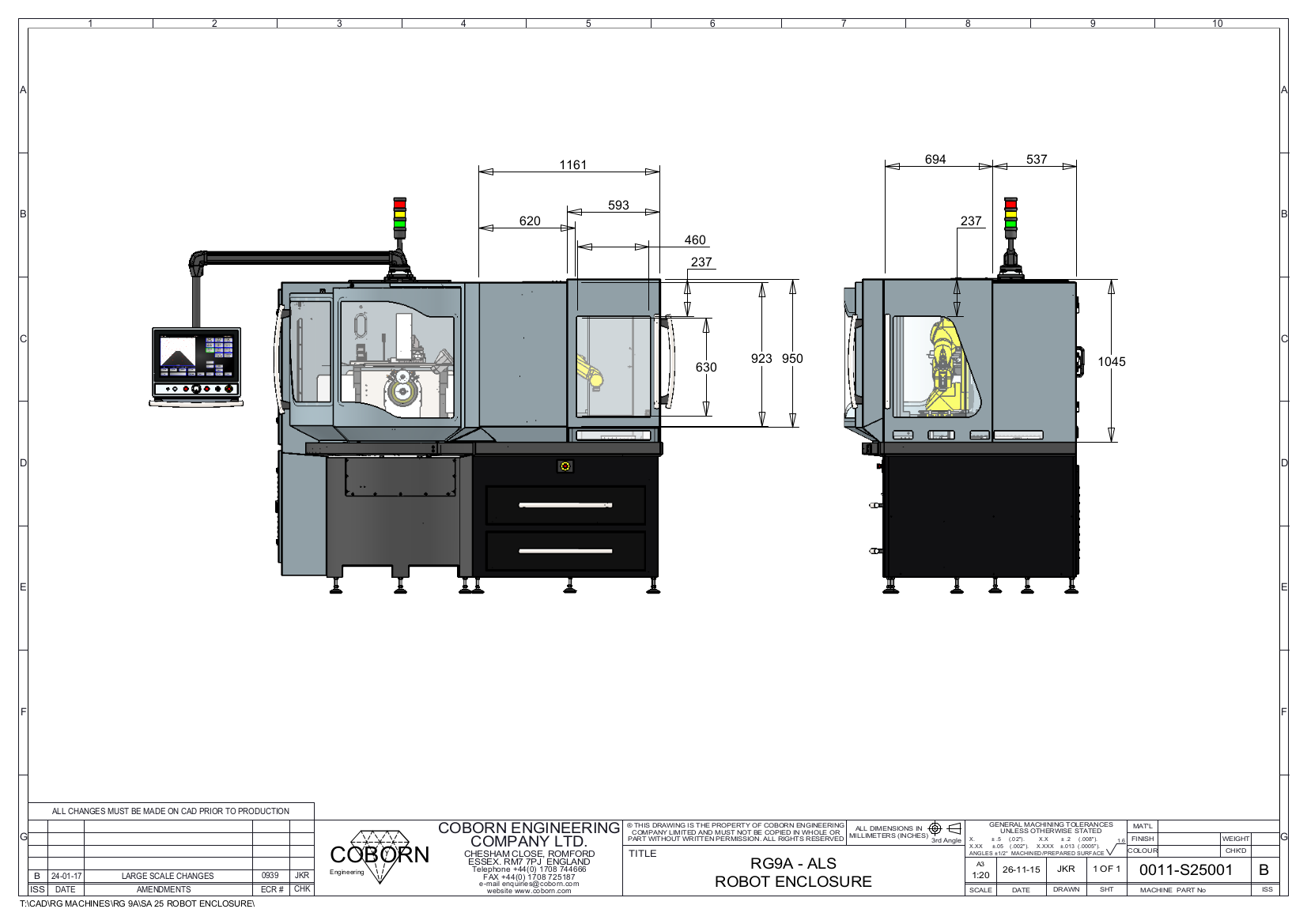

Mechanical options – Robot loading system (RU1), Rotary axis (RM), Linear module (LM), Work piece clamping systems (TH), Tailstock units (TSU)
Software options – Peripheral / CAM grinding software, Heli/Rad convex, High precision
location block, High resolution camera (10M Pixels), Dxf. import (profile grind)
Linear Axis – Full CNC control – Used with RM rotary axis for helical tool grinding – 50mm or 100mm linear motion, respectively – 0.1μm feedback resolution
Full CNC control – Indexing to 0.001° resolution or continuous rotation – Face plate design for hydraulic chucking systems, HSK and ISO adapters – Custom adapters available to special order
As RM130 – Designed for grinding larger workpieces such a CVD rotary dressers and saw blades up to 150mm in diameter
Provides hydraulic clamping for peripheral grinding of inserts between anvils – Allows PcBN inserts to be OD ground and the K-land also applied
Manual Tailstock Units – Provides a dead centre
Cam (peripheral) grinding module – Helical radial convex grinding module – CAD file import (dxf) module
